Vandal Proof Batten – Square – SWG 140 (Square) (T8)

Feature

Suitable for ceiling, wall or pendant mounting using suspension system. Prevention against pilferage or any acts of vandalism. The wire guard is hinged on the one side of the casing of easy maintenance and and installation. Cover plate held securely by treaded nut, offering large screw area using hand for fast installation.

Application

Ideal for Public hallways, staircases, corridors and life lobbies.

Download

Specification

Body

Made of heavy gauge sheet steel.

Guard

Heavy gauge galvanized steel epoxy powdered coated.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 36W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Condenser

Metallized Polypropylene Film

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/ Electronic ballast/ Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible and replaceable (Not compatible for ECG/Emergency fitting).

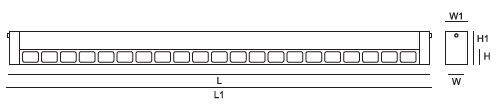

Dimension

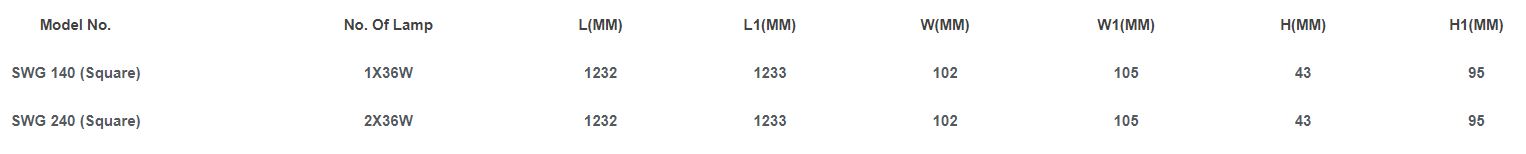

Ordering Information
