Wood Ceiling – Clean Room Fitting – IP54 – SWC 214 (IP54) (T5)

Feature

Design for recess on wood ceiling. Diffuser designed in normal hinged type for easy maintenance. Provided even light distribution glare control and maximum light transmission. Optional convert to IP54 rating type with gasket to prevent the build-up of dust and dirt.

Application

Ideal for technical workshop, laboratories, offices and supermarkets.

Download

Specification

Body

Made of heavy gauge sheet steel.

Diffuser

Wide choice of diffuser type for selection.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamps of 14W & 28W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Gasket

Elastomeric Nitrile Foam Material. (IP54)

Ballast

Electronic Ballast

Lampholder

Moulded from Polycarbonate Material

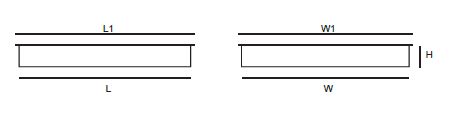

Dimension

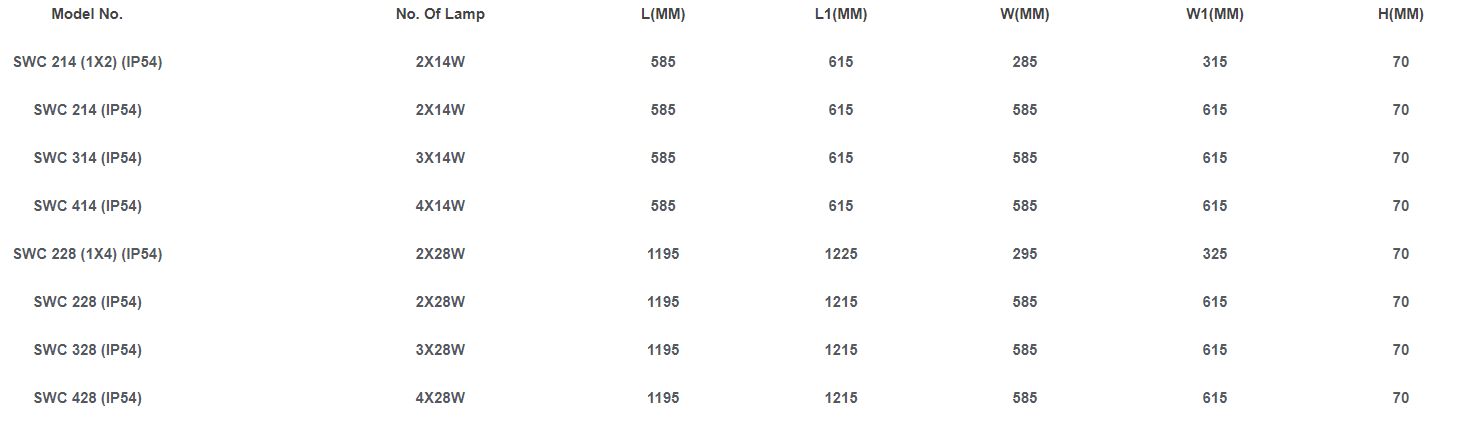

Ordering Information
