Wood/Plaster Ceiling – MOL Fitting – SWM 314 (T5)

Feature

Designed for recess mounting on wood or plaster ceiling with parabolic mirror optic louver. Louvers manufactured by flexible manufacturing system (FMS) for precise, accuracy and optimized product performance.

Application

Ideal for general light in offices, supermarkets and complexes.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvers

Anodized aluminum in either specular, semi specular or matt with profile cross blades.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamp of 14W/24W & 24/54W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

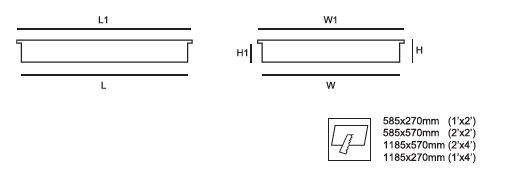

Dimension

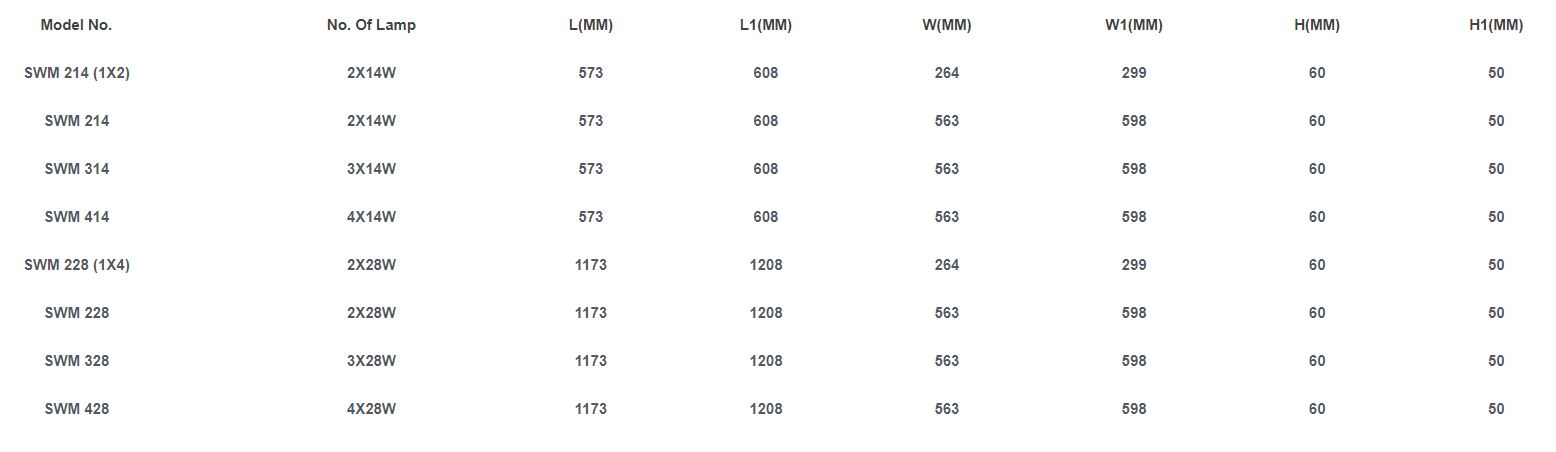

Ordering Information
