Downlight – Recessed Horizontal – Pluto 100

Feature

Recessed downlight for compact fluorescent lamps in horizontal mode. High reflectance vacuum metallization aluminum faceted reflector. Equipped with a removable gear box for easy maintenance, High luminious efficiency. Single and twin lamp selection availability.

Application

Ideal for commercial building, offices, conference rooms, classrooms, shops, etc.

Download

Specification

Body & Ring

Made of cold rolled steel.

Reflector

High quality specular/matt finish aluminum.

Paintwork

Coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Compact fluorescent lamp of PLC 10W, 13W, 18W, 26W, 32W & 42W.

Electrical Data

240V, 50Hz Power factor 0.9

Wattage

PLC - 10W/13W/18W/26W/32W/42W

Wire

HR 105° C

Ballast

Polyester vacuum impregrated.

Lampholder

G24d/G24q

Condenser

Metallized polypropylene film.

Optional Components

Electronic ballast/Emergency pack.

Dimension

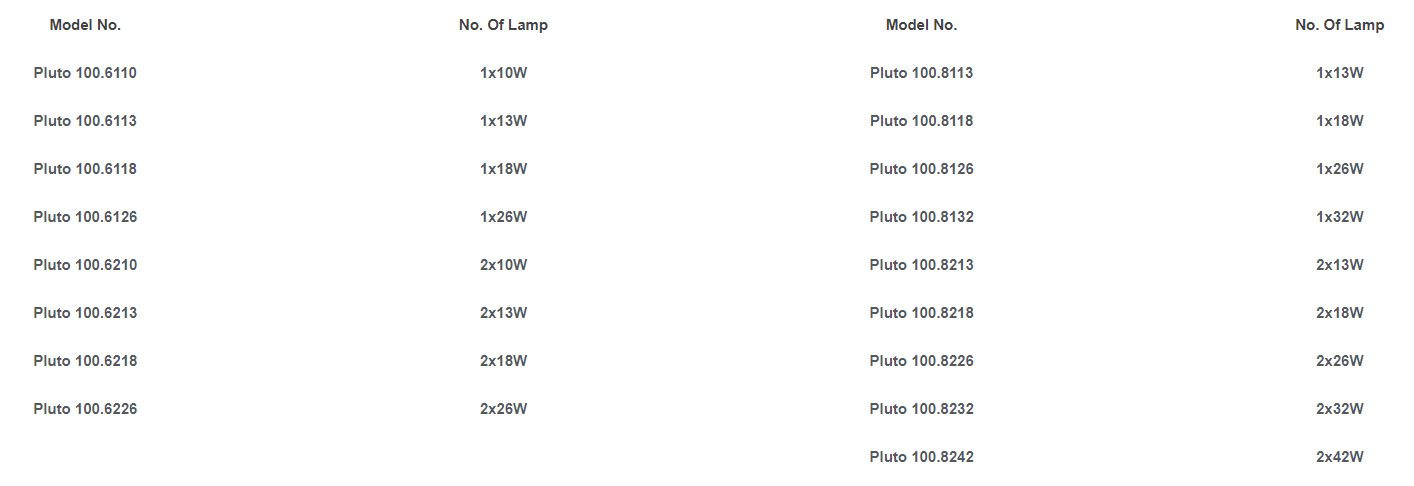

Ordering Information
