Recessed T-Bar Mounted – Direct & Indirect – SDI 214 (T5)

Feature

Direct/Indirect Light recessed mounted luminaires for T5 fluorescent Lamp. Provides comfortable indirect light effect. Light or tilt, wishbone spring, rocket bolt or spring clip installations. Limited luminance L ≤ 1000 cd/m² at reference angle above 65° all round.

Application

Ideal for office, schools, government building and commercial building.

Download

Specification

Body

Made of heavy gauge sheet steel.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamp of 14W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder

Moulded from polycarbonate Material

Optional Component

Fused terminal block/Emergency pack.

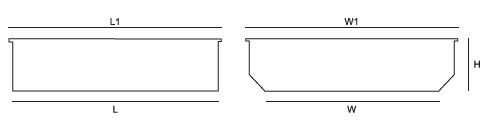

Dimension

Ordering Information
