Reflected Batten – Symmetrical (Aluminium) – SR 140 AR (T8)

Feature

Suitable for ceiling mounting or pendant mounting with suspension system. Symmetrical mirror reflector for directional light distribution. Reflector held securely by treaded nut, offering large screw area using hand for fast installation. Allow a wide and efficient direct distribution of light. Discrete appearance achieved with adjustable lampholder. End to end continuously mounting from performed punch out type without additional drilling required.

Application

Ideal for direct wide distribution application.

Download

Specification

Body

Made of heavy gauge sheet steel.

Reflector

Aluminum Reflector

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W, 36W and 58W.

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

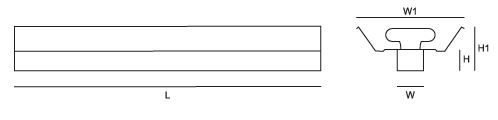

Dimension

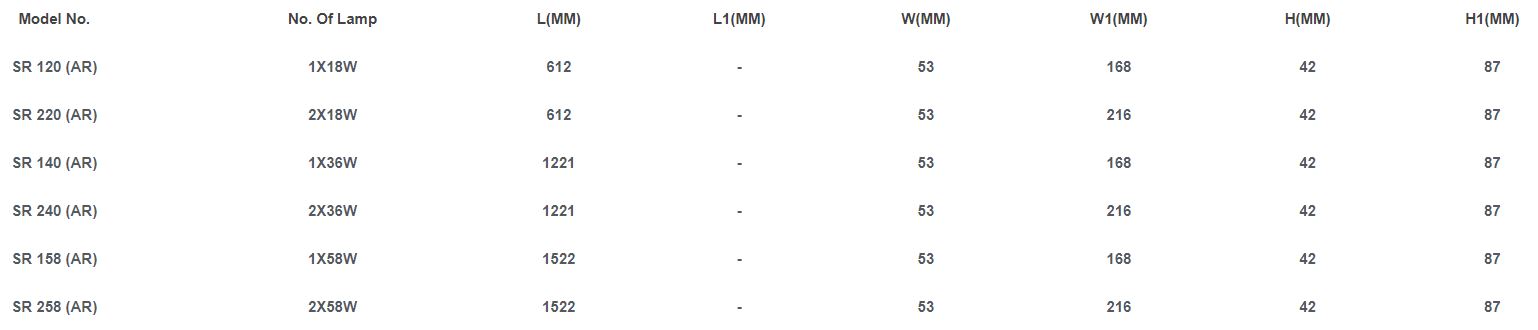

Ordering Information
