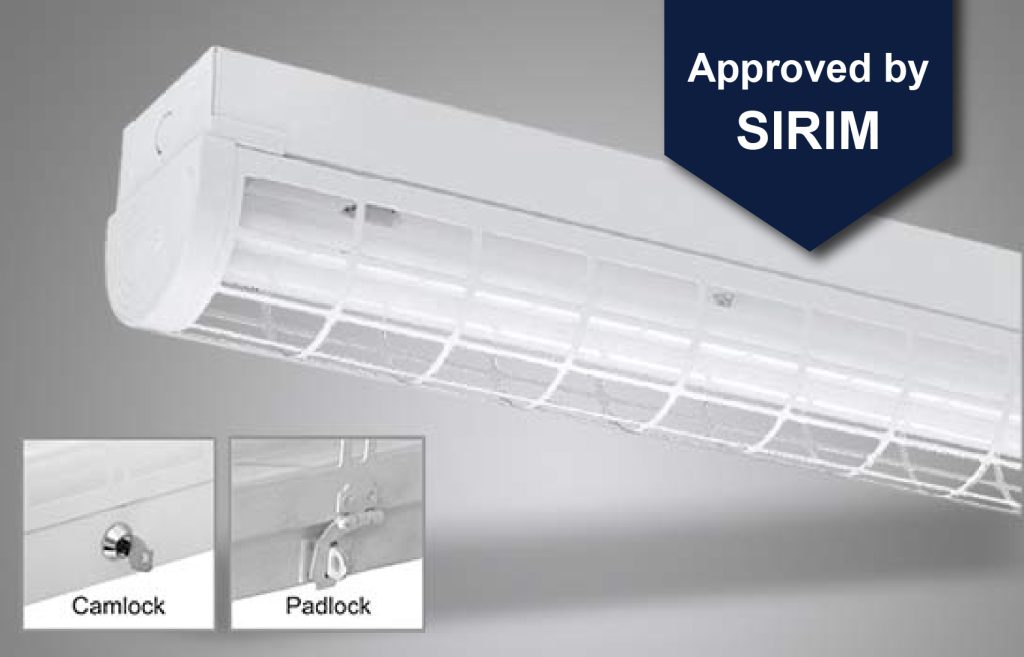

SWG T8 Vandal Proof Batten

Feature

Specially fabricated to incorporate a built-in camlock or padlock. Prevention against pilferage or any acts of vandalism. The wire guard is hinged on one side of the casing of easy maintenance and installation. Discrete appearance achieved with adjustable lampholder. Cover plate held securely by treaded nut, offering large screw area using hand for fast installation.

Application

Suitable for car parks, staircase, loading bays, corridors and lift lobbies.

Download

Specification

Model

SWG 1A 120

SWG 2A 220

SWG 1C 140

SWG 2C 240

Nominal System Lumen Output

939 lm

1587 lm

1880 lm

3678 lm

Nominal System Efficacy

115 lm/W

100 lm/W

133 lm/W

129 lm/w

Light Source

T8 LED Tube

Colour Temperature (CCT)

3000K/ 4000K/ 6500K

Input Voltage

240V, 50Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hr (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

0.9 Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Cold Roll Steel

Ingress Protection

IP20

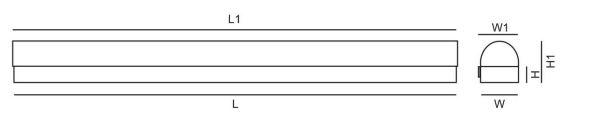

Dimension

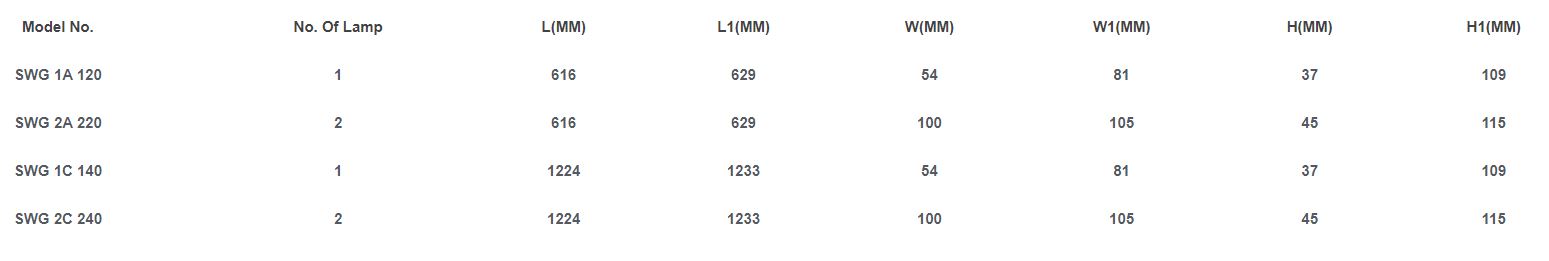

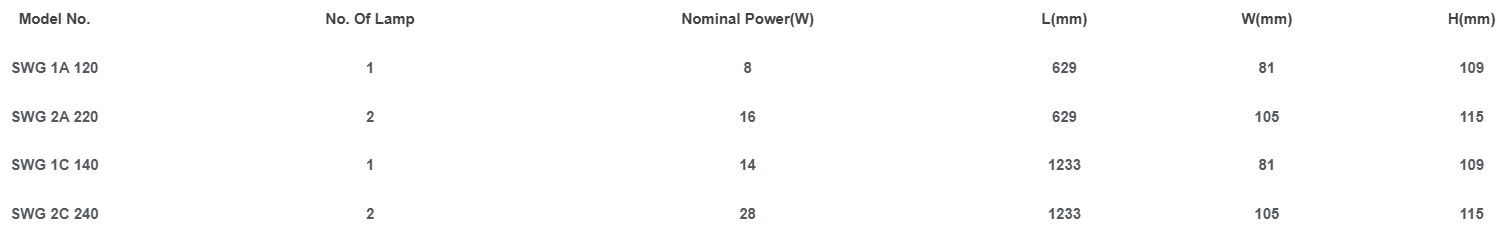

Ordering Information
